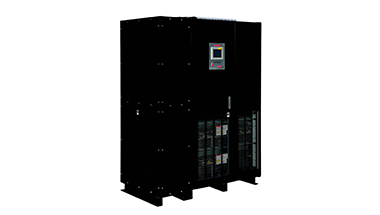

TOSHIBA G2020 Series UPS 500kVA Toshiba

The Toshiba G2020 series UPS is one of the world’s first to utilize breakthrough silicon carbide (SiC) technology for improved performance. Advanced SiC power modules reduce conversion losses by nearly 50%, delivering an unprecedented 98% efficiency over a load range of 30-75%, while maintaining the same performance specifications as the renowned G9000 Series UPS. The G2020 Series are space savers with a compact footprint, they include unity output power factor, bus stub terminals for installation flexibility and can be paralleled with up to 8 units. The RemotEye 4 Monitoring includes HTTP(S), SNMP, Modbus RTU & TCP, BACnet MSTP & IP to ensure you are always notified of any changes to the UPS. The touch screen display is another user friendly addition to UPS that makes it easy to find any alarm logs or history on the unit.



kVa Options

• 500kVa - 700kVa

PDF: Toshiba G2020 Series
